MACHINING PROCESSES

Description

Milling

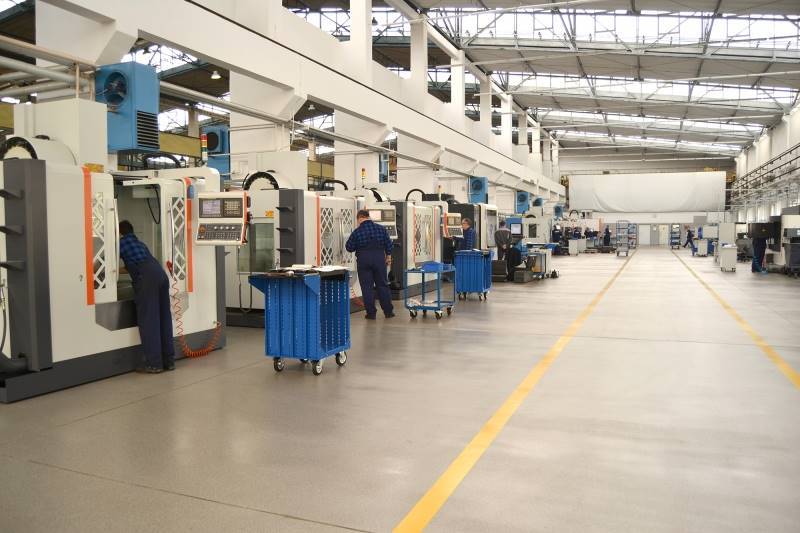

CNC processing centers

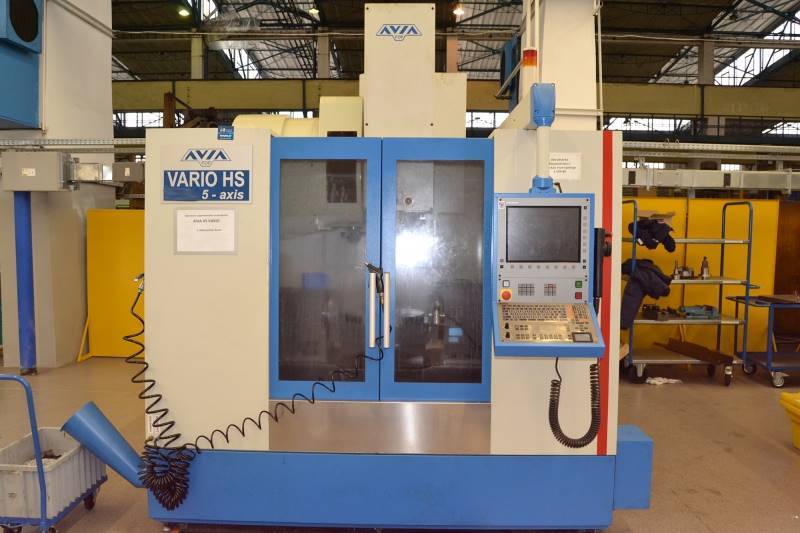

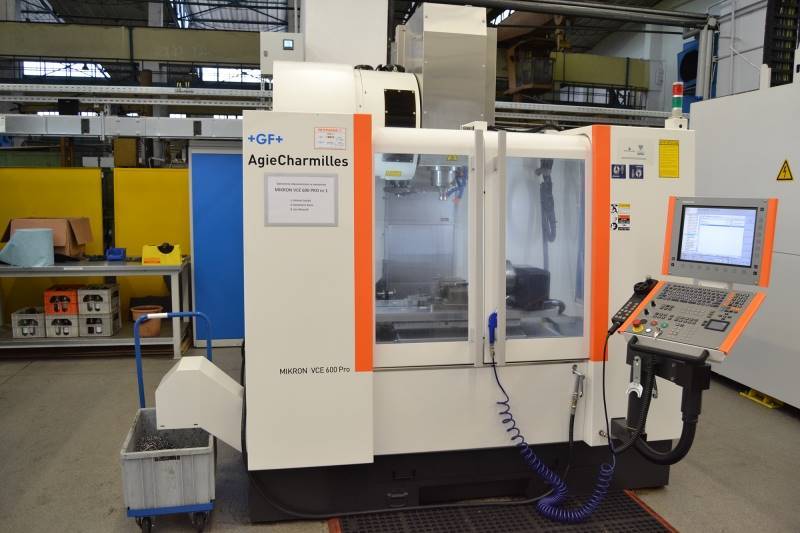

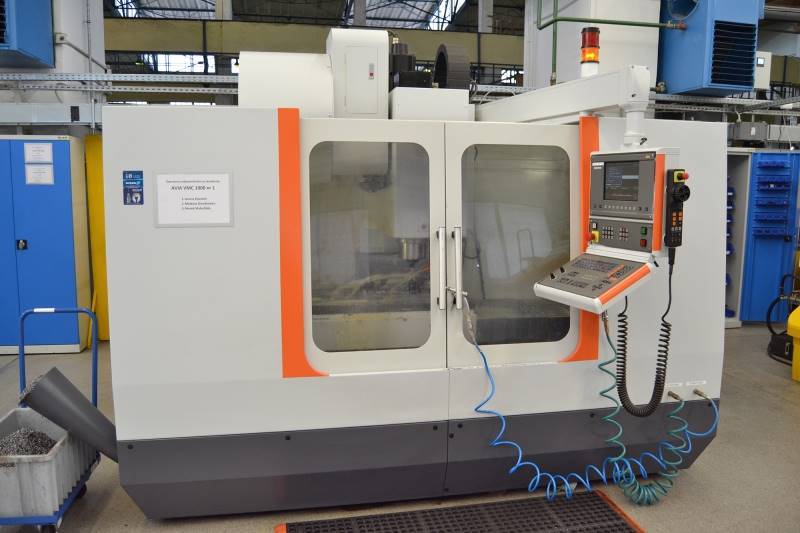

  • 5-axis – usable area: X=1135 mm, Y=1050 mm, Z=750 mm, rotary swivel table dimensions: 1050×850, the maximum weight of milled detail: 2000 kg,

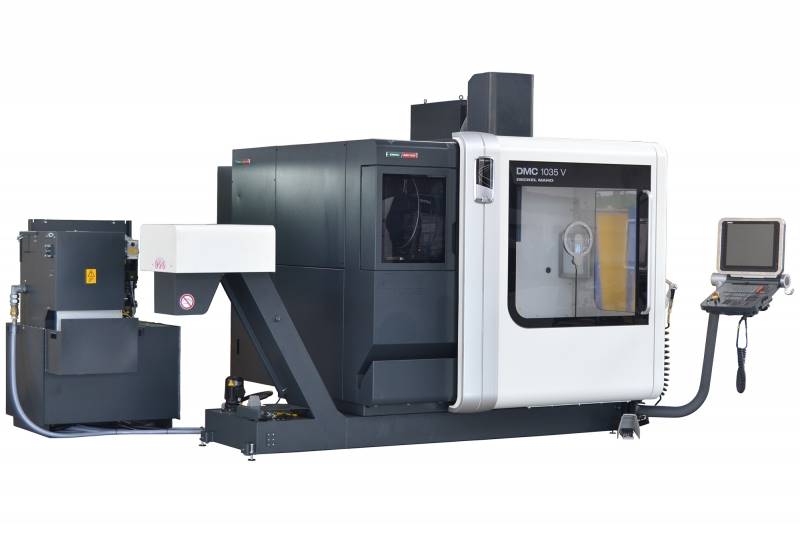

  • 4-axis – usable area: X=1035 mm, Y=560 mm, Z=510 mm, the maximum weight of milled detail: 125 kg using dividing head and 255 kg using dividing head and loose headstock,
  • 2-axis – usable area: X=1000 mm, Y=540 mm, Z=620 mm, the maximum weight of milled detail: 1000 kg.

Conventional milling machine – swivel table dimensions: 400×1000 mm.

Integrated Mill-Turn CNC Centers

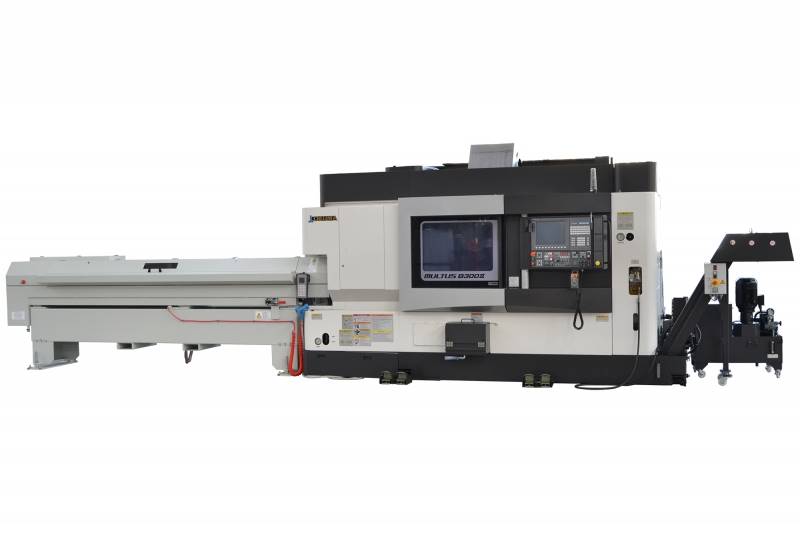

  • 5-axis OKUMA – using intercepting spindle and milling swivel head, the maximum turning diameter: Æ 630 mm, usable area Z=900 mm, Y=160 mm,
  • 5-axis DMG – the maximum turning diameter: Æ 500 mm, usable area: Z=3000 mm, Y=400 mm, the loose headstock is controlled through software, it is equipped with two steady rests and the scope of their grip equals Æ 30 ÷ 253 mm.

Turning

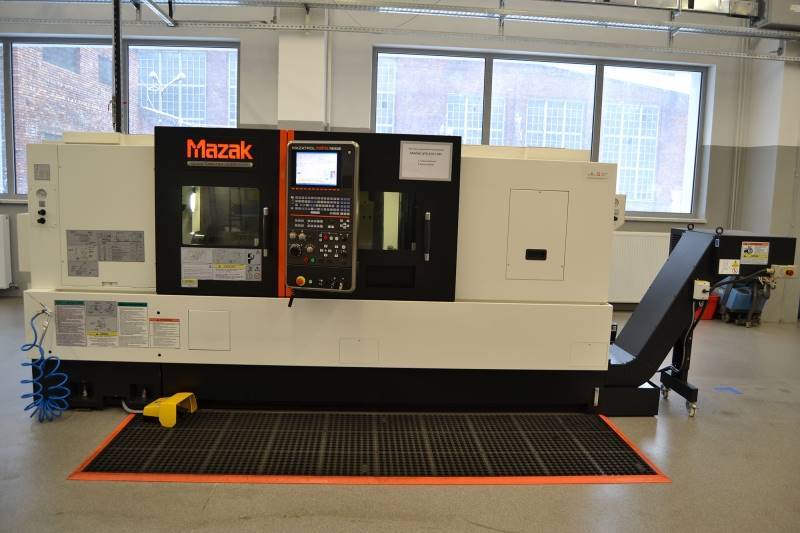

  • CNC turning lathes – the maximum turning diameter: Æ 560 mm, spindle clearance: Æ 100 mm, the maximum length of turned component: 1500 mm, axis displacement: X=230 mm, Y=100 mm,
  • universal turning lathes – the maximum turning diameter/length Æ 520 mm/2500 mm, Æ 560 mm/2000 mm, Æ 165 mm/3000 mm,
  • boring and turning lathe – the maximum turning diameter Æ 2000 mm,
  • facing lathe – the maximum turning diameter Æ 1620 mm.

Boring

  • WK130/2 boring machine – usable area 2000x2000x1800 mm, the maximum weight of treated detail: 1000 kg,
  • SIP boring machine – usable area 1400x950x800 mm.

Drilling

  • DIXI coordinate jig drilling machine – usable machining area 780x650x70 mm,
  • drill lathe (horizontal drilling) for long hole drilling – the maximum diameter: Æ 120/the maximum length 4000 mm; the drill lathe is equipped with tools for holes of the following diameters: Æ 6 mm, Æ 10 mm, Æ 11.1 mm, Æ 11.7 mm, Æ 13.25 mm, Æ 16 mm, Æ 20 mm,
    Æ 22 mm, Æ 29.3 mm, Æ 32.5 mm, Æ 33.6 mm, Æ 35.5 mm, Æ 38 mm, Æ 49 mm, Æ 58 mm,
    Æ 60 mm, Æ 61 mm, Æ 64.9 mm, Æ86 mm, Æ 120 mm.

Honing

  • SUNEN HTC 4132 CNC honing machine for long hole honing – the scope of honed diameter is equal to Æ5÷60 mm, the maximum length of honed detail cannot exceed 3000 mm, the honing machine is equipped with heads for machining of full-ended holes in the following diameters:
    Æ 7.6÷7.8 mm, Æ 8.1 mm, Æ 12.7 mm, Æ 21.3÷30.2 mm, 40 mm, Æ 48.5÷63.5, and grooved holes in the following diameters: Æ 7,62 mm, Æ 12.5 mm, the grooves can be profiled in the following diameters: Æ 7.82 mm, Æ 12.96 mm,
  • horizontal honing machine – the scope of honed diameters: Æ 50÷112 mm, the maximum length: 2200 mm,
  • vertical honing machine – the scope of honed diameters: Æ 7÷50 mm, the maximum length: 1000 mm.

Grinding

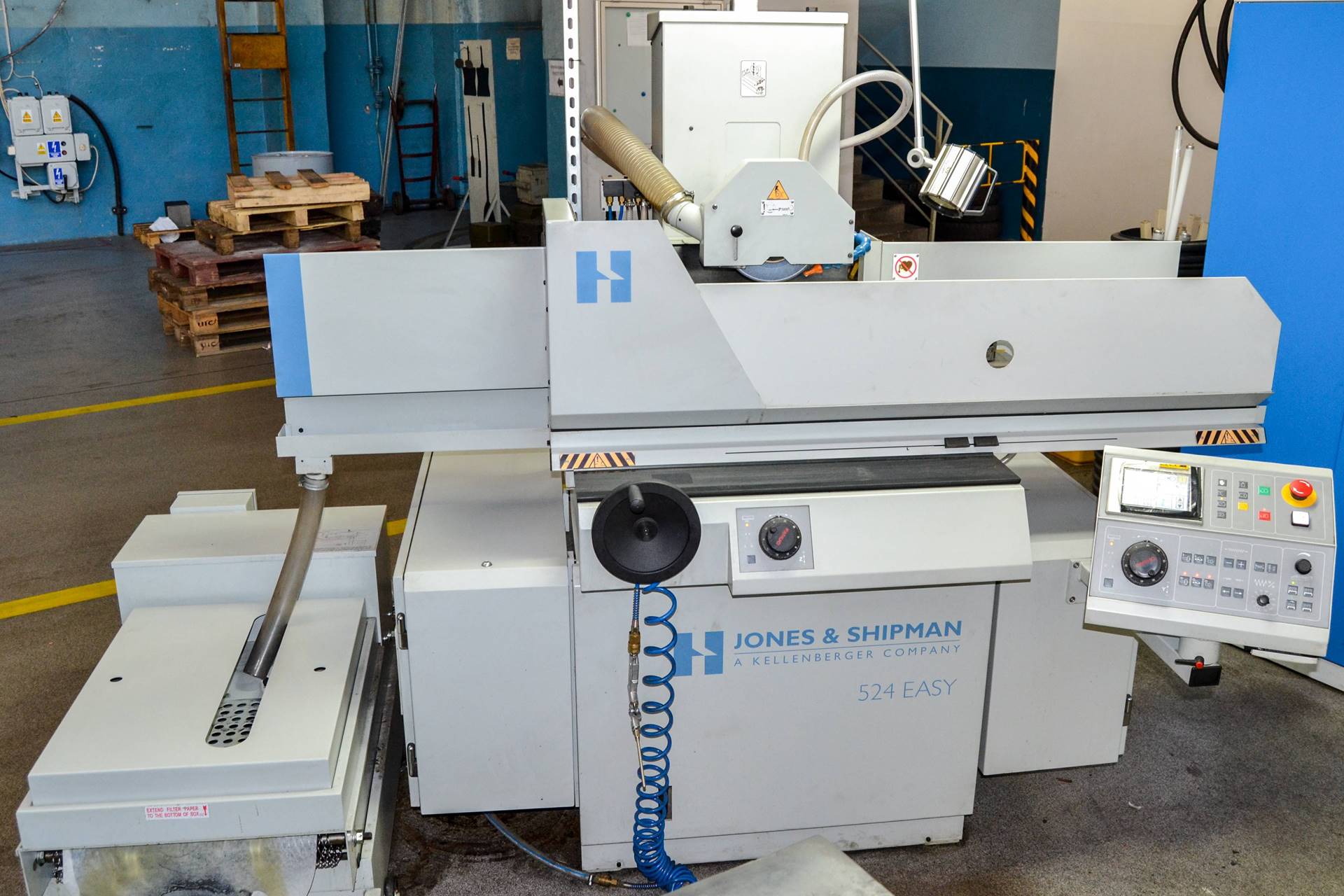

  • CNC grinding machine – manufactured by Jonses & Shipman 524 EASY, grinder table dimensions: 500×200 mm,
  • surface grinder – grinder table dimensions: 320×1000 mm,
  • cylindrical grinder – the maximum grinding diameter/length: Æ 400/1650 mm, Æ 315/2000 mm,
  • internal grinder – grinding diameter/length: Æ 40-400/250 mm, Æ 10-165/175 mm,
  • centerless grinder – the maximum grinding diameter/length Æ 125/200 mm.

Other machines

  • broaching machines – pull broaching length: 750 mm/force: 10T,
  • thread-rolling machines – the scope of diameter: 3÷70, the maximum length: 125 mm.
